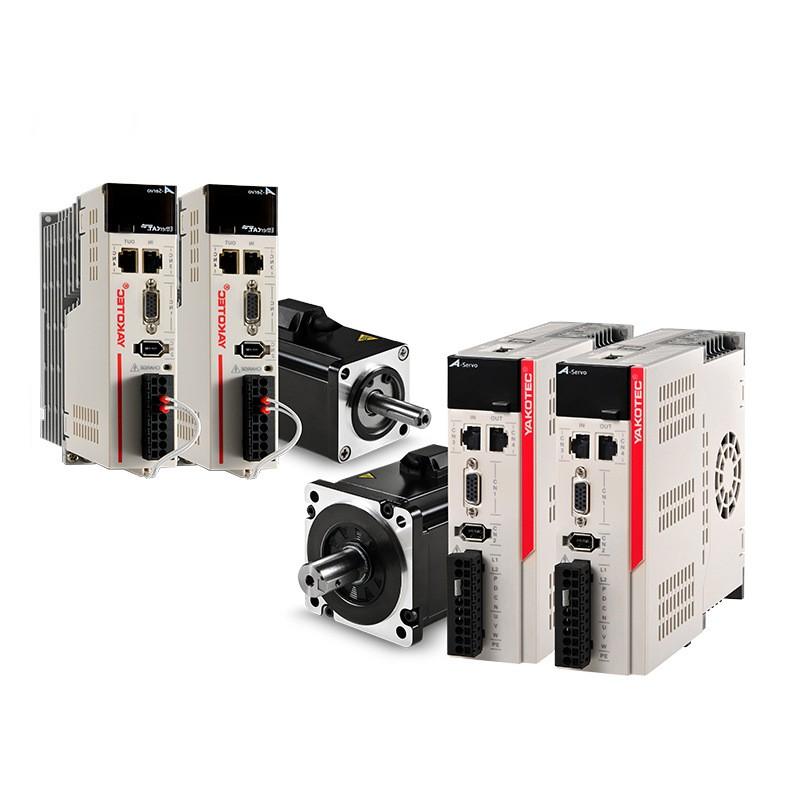

AS3-08BNI Yako AC Servo Drive AS3 Series

57mm Series 2 Phase Open-loop Stepper Motor  Step accuracy: 5% Temperature: 80℃Max Ambient temperature: -20℃-+50℃ Insulation resistance: 100MΩ Min 500VDC Pressure resistance: 500VAC 1 minute Radial runout: Maximum 0.02mm (450g load) Axial runout: Maximum 0.08mm (450g load) Specification Model Step Angle (°） Motor Lenth (L) Holding Torque (N.m) Rated Current (A) Resistance (Ω） Inductance (mH) Rotor Inertia (g.cm²） Weight (kg) Motor Leads YK57HB56-03A 1.8 56 0.90 3.0 0.75 1.1 300 0.68 6 YK57HB76-03A 1.8 76 1.35 3.0 1.0 1.6 480 1.03 6 YK57HB56-04A 1.8 56 1.20 3.0 0.74 2.4 280 0.7 4 YK57HB76-04A 1.8 76 2.0 5.0 0.40 1.7 480 1.06 4 YK57HB80-04A 1.8 81 2.2 5.0 0.43 1.8 520 1.15 4 YK57HB100-04A 1.8 101 3.0 5.0 0.48 2.2 720 1.6 4 Dimensions Dimensions Model Shaft Diameter D (mm) Shaft Type (mm) Shaft Length L1 (mm)  YK57HB56-03A 6.35 Key 0.5*15 20.6 YK57HB76-03A 6.35 Key 0.5*15 20.6 YK57HB56-04A 8 Key 0.5*15 20.6 YK57HB76-04A 8 Key 0.5*15 20.6 YK57HB80-04A 8 Key 0.5*15 20.6 YK57HB100-04A 8 Key 0.5*15 20.6 Motor connection

YKE2405M-2A-IO Features: New-generation 32-bit DSP control technology, high cost performance A single driver controls two stepper motors of the same model simultaneously, achieving synchronized movement Triple optocoupler isolated digital signal input with one output, compatible with 5V/24V signals, supporting common cathode and common anode wiring methods Employing the latest resonance suppression algorithm, it delivers exceptional stability at medium and low speeds. The current control is smooth, precise, and results in minimal motor heating It features 8 current levels and 16 speed options The start-stop control supports two modes The operating current, speed, and acceleration/deceleration can all be set through the host computer debugging software The lock motor current can be set via the host computer, with the default being 50% of the set current It features overvoltage, undervoltage, overcurrent, and phase sequence protection functions Typical applications: Mainly used for speed control, loading and unloading machines, connecting stations, logistics transportation, transfer equipment, electronic devices, lithium battery equipment, etc. Brief Introduction: YKE2405M-2A-IO is a high-performance one to two stepper drive based on the new generation 32-bit DSP technology. The driving voltage is DC 20-50V, equipped with two motor inputs, which can simultaneously adapt to current continuous output within 4.0A (effective value). The flange is a 42/57mm two-phase open-loop stepper motor, and the drive can set the current and speed by dialing when adapting to different motors. The control mode of this drive is spontaneous pulse speed control, with 4 dials available for 16 speed segments, and can also be set to any speed range through the upper computer; Equipped with three optoelectronic isolated digital inputs and one alarm output; Internally, a servo like control principle, unique circuit design, and superior software algorithm processing are used to ensure smooth low-speed operation of the motor. Precise current control technology greatly reduces motor heating, making it highly effective in devices where users expect low heating, low noise, high stability, and high precision.

YKD2305M is high performance digital step driver based on YAKO’s new 32-bit DSP technology. It’s designed for various models of two phase 42~60mm (NEMA 17~24) hybrid stepper motors which current are below 3A.

110mm Series 3 Phase Close-loop Stepper Motor  Step accuracy: 5% Temperature: 80℃Max Ambient temperature: -20℃-+50℃ Insulation resistance: 100MΩ Min 500VDC Pressure resistance: 500VAC 1 minute Radial runout: Maximum 0.02mm (450g load) Axial runout: Maximum 0.08mm (450g load) Specification Model Step Angle (°） Motor Lenth (L) Holding Torque (N.m) Rated Current (A) Resistance (Ω） Inductance (mH) Rotor Inertia (g.cm²） Weight (kg) Motor Leads YK385EC127A1 1.2 156 12 4.2 1.2 13 9320 6.5 3 YK385EC156A1 1.2 238 20 4.2 1.88 18 12510 10.4 3 Suitable drive model: MS-L3 Dimensions Dimensions Model Shaft Diameter D (mm) Shaft Type (mm) Shaft Length L1 (mm)  YK3110EC140C1 19 Key 6*6*30 39 YK3110EC220C1 19 Key 6*6*30 39 Encoder Wiring Black GND Red +5V Blue/White EA- Blue EA+ Orange/White EB- Orange EB+ *Motor / Encoder cable: 0.3m Encoder standard cable: 2m (optional 8m/10m) No more motor cable needed Motor connection

YKD2822M is high performance digital step drive based on YAKO's new 32-bit DSP technology. It's suitable for 86-130mm(NEMA34-57) 2 phase open-loop stepper motors.

60mm Series 2 Phase Close-loop Stepper Motor  Step accuracy: 5% Temperature: 80℃Max Ambient temperature: -20℃-+50℃ Insulation resistance: 100MR Min 500VDC Pressure resistance: 500VAC 1 minute Radial runout: Maximum 0.02mm (450g load) Axial runout: Maximum 0.08mm (450g load) Specification Model Step Angle (°） Motor Lenth (L) Holding Torque (N.m) Rated Current (A) Resistance (Ω） Inductance (mH) Rotor Inertia (g.cm²） Weight (kg) YK260EC65E1 1.8 87 2.0 5.0 0.3 1.2 490 1.0 YK260EC86E1 1.8 108 3.0 5.0 0.4 2.0 690 1.3 YK260EC65E1-KZ01 1.8 87 2.0 5.0 0.3 1.2 490 1.0            YK260EC86E1-KZ01              1.8 108 3.0 5.0 0.4 2.0 690 1.3 Suitable drive model: SSD2205M Dimensions Dimensions Model Shaft Diameter D (mm) Shaft Type (mm) Shaft Length L1 (mm)  YK260EC65E1 8 Flat 0.5*20 24 YK260EC86E1 8 Flat 0.5*20 24 YK260EC65E1-KZ01 8 Flat 0.5*25 30 YK260EC86E1-KZ01 8 Flat 0.5*25 30 Encoder Wiring Black GND Red +5V Blue/White EA- Blue EA+ Orange/White EB- Orange EB+ *Motor / Encoder cable: 0.3m Motor standard cable: 1.5m (optional 2m/3m) Encoder standard cable: 1.5m (optional 2m/3m) Motor connection

YKE5405M 5-phase Stepper Drive The YKE5405M is a high-performance digital stepper drive based on a new generation of digital control technology, specifically designed for five-phase motors. Compared to ordinary two-phase stepper drivers, its unique advantages include smoother low-speed operation and less low-speed resonance. At high speeds, it offers better start-stop performance and output levels. Internally, this driver employs a servo-like control principle, a unique circuit design, and superior software algorithm processing. Even under low microstepping conditions, it ensures smooth low-speed motor operation with low vibration and noise. Furthermore, its smooth and precise current control technology significantly reduces motor heat generation, making it highly effective in applications requiring responsiveness and smoothness. Features:  New generation 32-bit DSP control technology, offering high cost-effectiveness, excellent stability, and superior noise and vibration performance.  Optically isolated differential signal input, compatible with 5V/24V signals, adaptable to the signal requirements of different controllers.  Single/dual pulse function, adjustable via DIP switches.  Supports pulse smoothing control and pulse filtering functions, configurable according to actual usage scenarios. Features 16 levels of constant torque microstepping, supporting up to 125,000 microsteps.  Supports 8 levels of current DIP switch adjustment, with a maximum peak current of 4.9A. Maximum pulse response frequency up to 500kHz.  Voltage input range: DC20~50V.  Includes overvoltage, undervoltage, and overcurrent protection detection functions. Applications:  Primarily used in automated equipment for medical devices, semiconductors, and 3C non-standard products. It performs exceptionally well in devices where users expect low heat generation,  low noise, high stability, high response, and high precision. Dimensions: YKE5405M Microstep Setting Table PU/Rev 500 1000 1250 2000 2500 4000 5000 10000 12500 20000 25000 40000 50000 62500 100000 125000 SW8 ON ON ON ON ON ON ON ON OFF OFF OFF OFF OFF OFF OFF OFF SW7 ON ON ON ON OFF OFF OFF OFF ON ON ON ON OFF OFF OFF OFF SW6 ON ON OFF OFF ON ON OFF OFF ON ON OFF OFF ON ON OFF OFF SW5 ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF ON OFF SW4: OFF=Half current          ON=Full Current YKE5405M Current Table Current RMS 0.5 0.7 1 1.5 2.0 2.5 3.0 3.5 Current Peak 0.7 1 1.4 2.1 2.8 3.5 4.2 4.9 SW3 ON ON ON ON OFF OFF OFF OFF SW2 ON ON OFF OFF ON ON OFF OFF SW1 ON OFF ON OFF ON OFF ON OFF YKE5405M Drive operation mode setting Mode Setting SW9 SW10 SW11 SW12 Functions Pulse input method Pulse smoothing control Pulse filter control Default direction control OFF PU+DR Enabler 200KHz Clockwise direction ON CW+CCW+ Disabler 500KHz Counterclockwise direction
